MAXHUB & Owl Labs Small Microsoft Teams Rooms Bundle

Build to power small meeting rooms

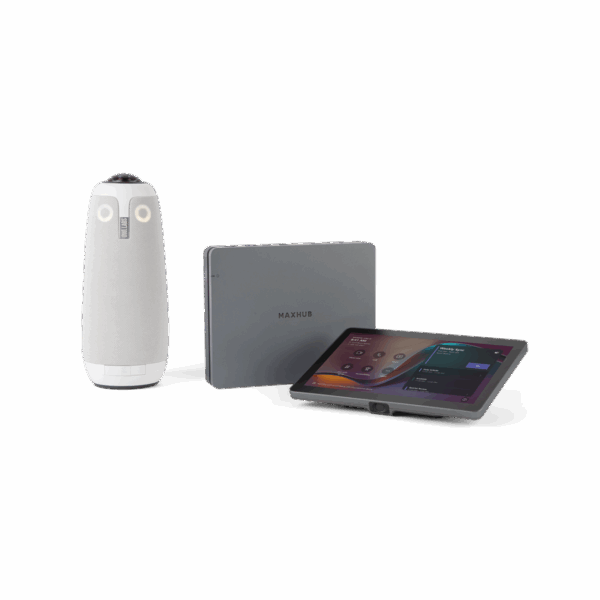

This meeting room solution includes the MAXHUB Mini-PC, the MAXHUB Touch Control Panel, the Owl Labs Meeting Owl 3, and the Owl Labs 16’/5M USB-C to A cable.

All-in-one 360-degree video with the Meeting Owl

The Meeting Owl 3 is an all-in-one video conferencing device that captures 360° video in 1080p HD and 360° audio up to 18’ (5.5m) away. Enjoy autofocus to whoever is speaking to foster active collaboration and increased participation while showing a 360° view of the room.

One touch to join with the MAXHUB XCore Kit Touch Control Panel

Reduce the number of participant laptops needed and collaborate faster with the MAXHUB Mini-PC and Touch Control Panel and start hybrid Microsoft Teams meetings.

Powerful dedicated in-room compute with the MAXHUB XCore Kit Mini-PC

In-room compute powered by Windows 11, teams can equip any huddle or small meeting space for effective collaboration.

Console

• Connectivity: HDMI Ingest, USB-A USB-C, Audio out
• Resolution: 1920 (H) x 1200 (V)

Speakers

• 3 built-in speakers for 360° in-room sound
• Adjustable background noise suppression and noise reduction settings

Microphone

• 8 omnidirectional beamforming Smart Mics that equalize speaker volume

Camera

• Horizontal/Vertical field of view: 360° | 45°
• Zoom: 2X digital zoom, 4X manual zoom, controlled in-app
• Mount options: Table, tripod, ceiling mount

Dimensions

• Console: 245 × 164.3 × 77.4mm / 9.65″ x 6.47″ x 3.05″
• Compute: 230mm × 185mm × 41.5mm / 9.06″ x 7.28″ x 1.63
• Cable length: 6’/1.8M USB-C cable

• Meeting Owl 3
• AC line cord
• USB C 6′ (1.8m) Cable
• 12V power supply
• In-box documentation
• XC13T Mini-PC
• Wall bracket
• PC bracket
• Cable cover screw
• Machine screw
• Expansions crew
• Self-tapping screw
• Cable cover
• HDMI cable
• Power cord
• Quick Start Guide
• TCP20T Touch Control Panel
• USB-C Cable
• HDMI cable
• Quick Start Guide
