Neat Board 50

NEATBOARD 50 – all-in-one collaboration device

Neat Board 50 UHD 4K Touchscreen Commercial Monitor is a simple and elegant all-in-one device, has a 50-inch touchscreen that empowers you to move, interact, create and collaborate efficiently, all within easy reach. Everything feels just right, giving you more space to think and be productive. It combines a 4K active touch screen, wide-angle camera, 5-microphone array, and noise-cancelling speaker system to give your video conferencing space. The capacitive touchscreen included annotation software, and Neat Active Marker provide a smooth and natural writing experience. Connect local devices via HDMI or USB-C with DP alt mode, touch back, and power for your device.

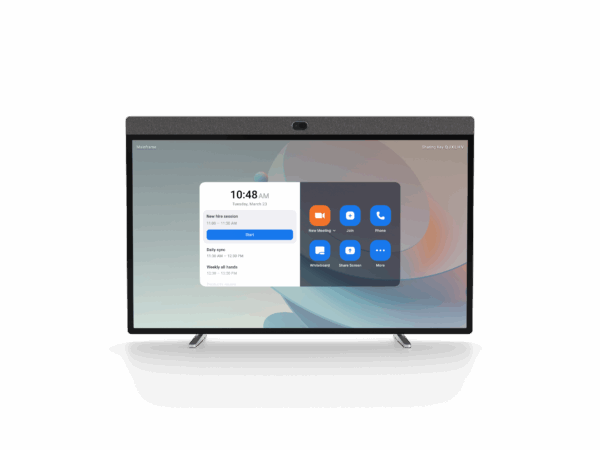

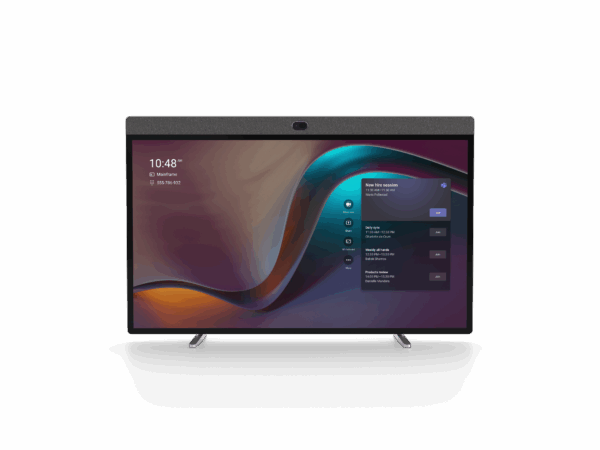

Its rich and immersive collaborative canvas lets you run Microsoft Teams or Zoom Rooms or dive into your favorite apps like Browser, Miro, and more for super productive, next-level teamwork. Meanwhile, Neat Active Marker gives you the perfect amount of friction and immediate response to write, markup or sketch as you naturally would, helping infuse more personality into your creative workshops or presentations

More on the mark
Neat Board 50 comes with Neat Active Marker for the perfect amount of friction and immediate response to write, markup or sketch as you naturally would, helping infuse more personality into your creative workshops or presentations. No pairing or charging is required.

Power to your people
Everything about Neat Board 50 is simple, yet it houses some seriously potent tech under its sleek exterior. Delivering exceptional power and performance, Neat Board 50 breathes new life into your video meetings by enabling conversations to flow naturally, even in the liveliest surroundings.

Room for more
Whether you’re meeting or collaborating one-on-one, in small groups or hosting large gatherings, it gives you considerable flexibility. It has an HDMI output for a dual-screen setup with an additional display or projector. Alternatively, you can combine two Neat Board 50s to power an extra screen or have your own device run the show through a single USB-C and touchback

Deeper engagement
A custom-built 50-megapixel camera with 113 degrees horizontal field of view and lightning-fast image processing can capture the entire room. Together with its industry-defining auto-framing, Neat Symmetry, it presents everyone equally up close for more natural, equitable and inclusive meetings. In addition, powerful audio processing minimizes disruptive noises, so everyone’s always heard, even in lively surroundings.

Wall mount
The wall mount is VESA compatible and lets you position Neat Board 50 tight to your wall, helping make your room integrations look smarter.

Adaptable setup

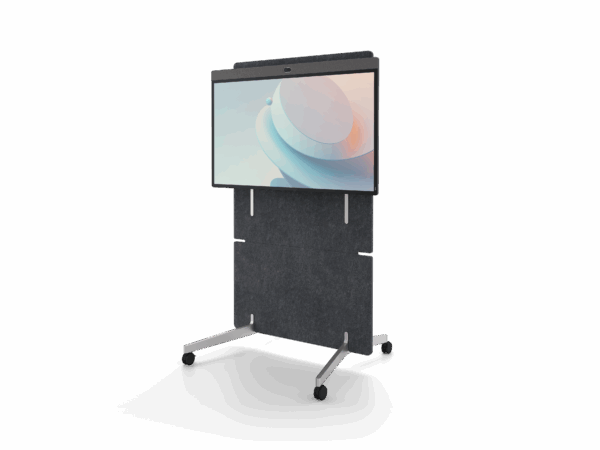

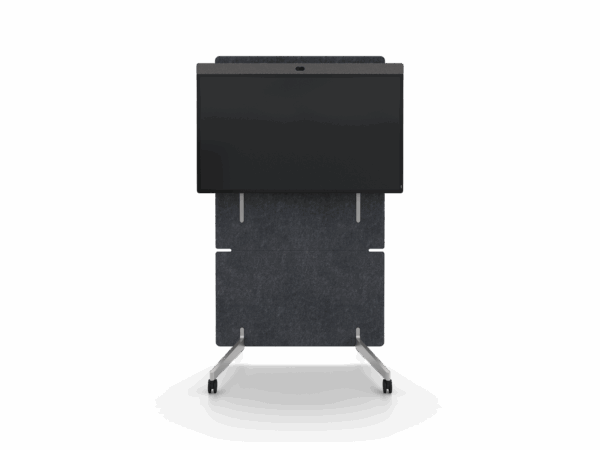

Neat Board 50 ships with a minimalist table stand that’s quick and easy to set up. For greater accessibility, an adaptive stand and wall mount allow anyone to adjust the screen up or down for optimal use and viewing. A wall mount with VESA compatibility is also available for tight-to-the-wall, smarter room integrations

General

• Ambient light senso
• 50-inch capacitive multi-touch LCD screen
• Ultra HD 4K (3840 × 2160 screen resolution)
• 16:9 aspect ratio
• Anti-glare and anti-fingerprint coating
• Glass surface hardness 7H
• USB-C 90W power delivery
• Support for 2nd display
• Camera LED
• System LED
• Ambient light sensor

Video

• 4x digital zoom (optional 8x digital zoom)
• Fixed lens, infinite focus F-value: 2.8
• 50 MP capture resolution
• 113 degrees horizontal field of view
• Automatic people framing
• Hardware-accelerated video encoding and decoding
• Distortion correction
• Noise reduction
• Chromatic aberration correction

Audio

• Speaker box for maximum tonal range with minimal distortion
• Opposing drivers for vibration cancellation
• Dedicated wide-angle ultrasonic tweeter
• 3 sensor microphones
• 5 beamforming microphones angled in an end-fire array
• Hardware-accelerated audio processing (NAP)
• Echo cancellation
• Noise suppression
• Automatic gain control
• Dereverberation

Electrical and environmental requirements

• 100-240V ~ 50/60Hz 3.5A
• Ambient operating temperature: 32° to 95° F (0° – 35° C)
• Storage temperature: -4° to 140° F (-20° to 60° C)
• Relative humidity: 10% to 90%
• Built-in power supply

Networking and ports

• Wi-Fi 6
• Bluetooth for Proximity Join in Microsoft Teams
• AC Power (internal power supply)
• Ethernet
• USB-C (support DP Alt Mode for sharing and BYOD mode)
• HDMI-in for screen sharing
• HDMI-out for dual screen setup

Size and weight
Table stand

• Width: 44.8 inches (1138 mm)
• Height: 29.3 inches (745 mm)
• Depth: 10.3 inches (261 mm)
• Weight: 52 pounds (23.5 kg)
• Net weight of table stand: 2 pounds (0.9 kg)

Wall mount (optional)

• Width: 44.8 inches (1138 mm)
• Height: 28.2 inches (716 mm)
• Depth: 3.6 inches (92 mm)
• Weight: 59.5 pounds (27 kg)
• Net weight of wall mount: 9.7 pounds (4.4 kg)

Adaptive mount (optional)

• Width: 44.8 inches (1138 mm)
• Height: 28.2 inches (716 mm)
• Depth: 3.8 inches (96 mm)
• Weight: 71.9 pounds (32.6 kg)
• Net weight of adaptive mount: 22.0 pounds (10 kg)

Adaptive stand (optional)

• Width: 44.8 inches (1138 mm)
• Height min: 68.8 inches (1747 mm)
• Height max: 73.8 inches (1874 mm)
• Depth: 36 inches (915 mm)
• Weight: 136.7 pounds (62 kg)
• Net weight of adaptive stand: 86.7 pounds (39.4 kg)

Neat Active Marker

• Pressure sensitivity
• Tail end eraser
• Interchangeable battery (AAA)
• No pairing required
• Supports MPP 2.0 protocol
• Magnetic attachment to Neat Board 50

Dimensions

• Length: 5.7 inches (146 mm)
• Diameter: 0.6 inches (14.5 mm)
• Weight: 0.08 pounds (37 gram)

Neat Board

• 1 Neat Active marker Marker
• Power cord (9.9 feet / 3 meters)
• Ethernet cable (16.4 feet / 5 meters)
• Table stand

Adaptive stand

• Adaptive mount
• 2 × rail
• 3 × panel
• Back sheet
• 2 × feet
• 4 × wheel
• 2 × cover
• 2 × M6 screw (0.4 inches / 10 mm) for the adaptive mount
• 26 × M5 screw (0.5 inches / 12 mm) for the panels
• 5 mm hex wrench
• 3 mm hex driver
• Power cord (14.8 ft / 4.5 m)

Neat Pad

• 2 × Ethernet cable (9.8 feet / 3 meters + 16.4 feet / 5 meters)
• PoE power adapter
• Mount adapter, side mount and wall mount
• 4 × M4 screw (0.39 inches / 10 mm) for the mount adapter
• 3 × M4 screw (0.26 inches / 6.7 mm) for the side mount
• 2 mm hex wrench
• 2.5 mm hex wrench

What you need

• Internet connection
• License for Zoom Rooms or Microsoft Teams

Neat 1-year limited hardware warranty

Accessories

• Mounts: General Mounting, Adaptive Stand, Adaptive mount and Wall mount
