Yealink MVC S90 Microsoft Teams Rooms for extralarge rooms
Yealink MVC S90 is specially designed for extra-large conference rooms. This set includes new generation high performance MINI-PC MCore Pro, touch panel MTouch Plus, intelligent 4K PTZ camera UVC86, and AVHub specially designed for audio and video processing
$13,000.00
Description
Yealink MVC S90-C5-007 Native Microsoft Teams Rooms system
Yealink MVC S40 is specially designed for small-to-medium conference rooms. The standard set includes high-performance MINI-PC MCore Pro, touch panel MTouch E2, and a new generation of smart conference room audio and video equipment jointly created by Yealink: SmartVision 40 smart audio and video integration machine. This all-in-one machine has 2x 48MP lenses, a 120° pickup range, supports IntelliFocus, Multi-stream Intelliframe*, Video Fence, and other cutting-edge AI functions of Teams, which will bring you an all-around immersive smart meeting room experience. Yealink third generation MINI-PC MCore Pro combines aesthetics with practicality, has three HDMI ports, and comes with EDID, providing a flexible and reliable deployment solution for conference rooms. Yealink’s third-generation conference touch panel MTouch E2 was designed with the idea of multi-function all-in-one, it has a built-in Human Motion Sensor that the conference system can automatically wake up and you can immediately start the conference.
SmartVision 40:
The dual lens fixed-focus stitching solution combines the images from two lenses to achieve a higher pixel density, resulting in clearer and sharper image quality. The intelligent AI features include IntelliFocus, Multi-stream IntelliFrame, Video Fence, etc. It can automatically detect speakers in the meeting room, frame them, and display them on the screen through multi-stream output, providing a more intuitive and interactive remote meeting experience. Also, the Video Fence feature can intelligently identify and block interfering factors in the meeting room, maintaining a clean and professional meeting display.
High-quality audio pickup experience:
SmartVision 40 has a 6-meter voice pickup range, built-in stereo speakers, 3-meter full-duplex technology, and 8x MEMS microphone array. The intelligent noise reduction technology provides a good audio experience. In addition, it can support 2 additional expansion microphones that can cover a large conference room.
Convenient screen sharing:
The MVC S40 supports wire and WPP30 wireless screen-sharing solutions. So, users only need to plug in WPP30 or pair it with third-party screen sharing, which can be one key to initiating content sharing.
Fast BYOD solution:
The MVC S40 supports wired BYOD solutions. It truly realizes the conference room experience that you want.
Simple to deploy, easy to use:
With the VCH port and USB port, the Yealink audio and video system is specially designed for video meeting rooms so that the deployment can be easily extended. At the same time, the cable management feature of Yealink MCore Pro ensures the wire connection’s stability and the most appropriate deployment can be achieved according to the layout of the meeting room. One CAT5e is enough to connect the TV area to the conference table area, and to complete the data transmission and power supply, no additional power supply or extension cable is needed, which not only simplifies the deployment but also effectively reduces deployment costs.
Manage your devices remotely:
This solution supports Yealink Device Management Platform/Cloud Service, and you can flawlessly manage, monitor, configure, update, and diagnose all Yealink audio and video device peripherals on this platform remotely.
Technical Specifications
- 11th Gen Intel® Core i5
- Memory: 8 GB (2 x 4GB)
- Storage: 128 GB SSD
- 3x HDMI video output with CEC supported
- TPM2.0
- Kernel DMA
- EDID
- Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
- Bluetooth: BT 5.2
- 1 x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
- 4 x USB 3.0 Type-A
- 1 x 10/100/1000M Ethernet port
- 1 x Power port
- 1 x Security lock slot, Integrated cable management
MTouch Plus
- 11.6-inch narrow bezel IPS display
- 1920 x 1080 video resolution
- Angle between screen and desktop (30° ~ 70°)
- Adjustable angle of support frame (50° ~ 180°)
- Support wired and wireless (with WPP30) content sharing
- Support multi-screen control
- Support third-party screen sharing
- Support external PD power supply to power the sharing device
- Support HDMI/USB-C video input
- Support desktop placement, desktop fixed, wall-mounted deployment
AVHub, audio and video processor
- 2 x USB-A port
- 1 x USB-B port
- 1 x Codec port
- 7 x Yealink VCH port(RJ-45)
- 1 x RCA in/out interface
- 1 x 6.3mm Line in interface
- 1 x 6.3mm Line out interface
- 1 x power interface
- Dividable and merging meeting rooms are supported
- Support intelligent multi-speaker tracking
UVC86 USB PTZ Camera
- 4K Sensor
- 20.4 × HD zoom (12x optical, 1.7x digital)
- Angle of view:-90° DFOV, 81° HFOV, 50° VFOV -120° DFOV, 110° HFOV, 78° VFOV
- Auto-framing
- Speaker tracking
- Presenter tracking, support area trigger and gesture control
- Multi-focus
- Picture-in-picture
- Up to 9 preset positions can be set
- Horizontal rotation: 200°
- Vertical rotation: 130°
- 1 x HDMI output
- 1 x Yealink microphone port(RJ-45)

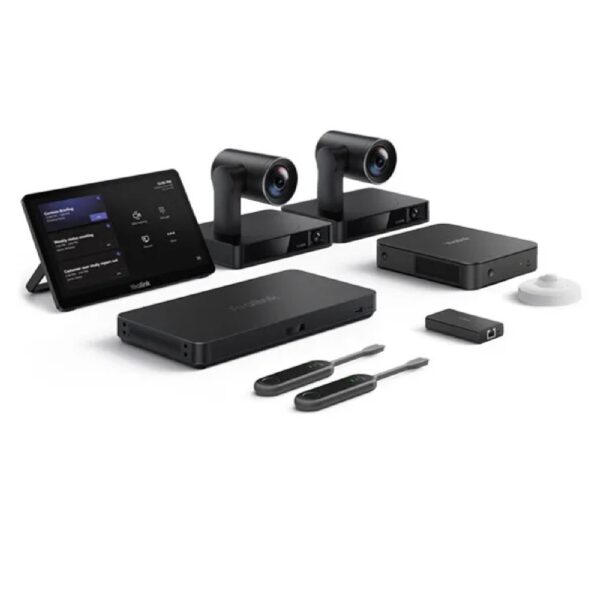

What’s in the Box
- MCore Pro, Gen-3 Mini-PC
- MTouch Plus, Gen-3 touch panel
- AVHub, audio and video processor
- 2 x UVC86 USB PTZ camera
- 2 x WPP30 wireless presentation pod
- RoomSensor, meeting room sensor
Included Warranty
|
||||
Dimensions | ||||
---|---|---|---|---|
|
